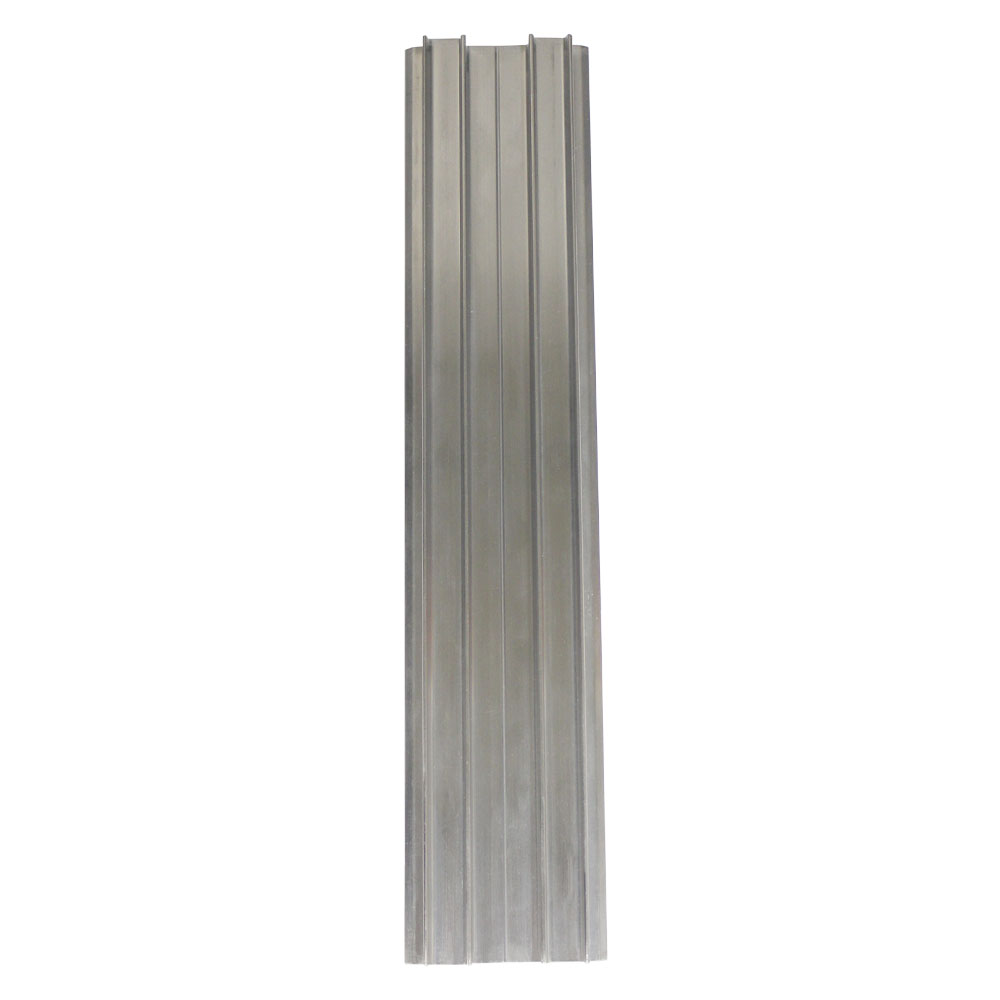

H-CHANNEL
- Designed by industry professionals with over 100 years of combined commercial architectural sheet metal and metal wall panel experience.
- Designed to be specifically utilized for composite metal panel spline joint attachment.
- Made of strong 6063-T6 Aluminum.
- Available in up to 12’ standard lengths, with custom lengths available upon request.
- Unique tubular design for increased strength for your system, while concealing fasteners, keeping your fabricators and installers hands safe from unseen fasteners.
- Universal and custom hybrid designed for both Rainscreen and Wet Seal composite metal panel installation applications.
- Instrumental component in the support of the achievement of all test results and ratings including receiving the industry's best ratings for the AAMA 508 & AAMA 509 of a V1 / W1 rating!
- Design includes our State-of-the-art internal weeping/drainage system without affecting your system’s aesthetic appeal/appearance.
- Built-In grooves specifically designed to support clean sealant/caulk applications and installations.
Project Spotlight: Glenview Ice Arena
Profile View
Series 1000 H-Channel Rainscreen Vertical Joint Reference Detail
Series 1000 H-Channel Wet Seal Vertical Joint Reference Detail
DOCUMENTATION
UCPS Extrusions Sell Sheet

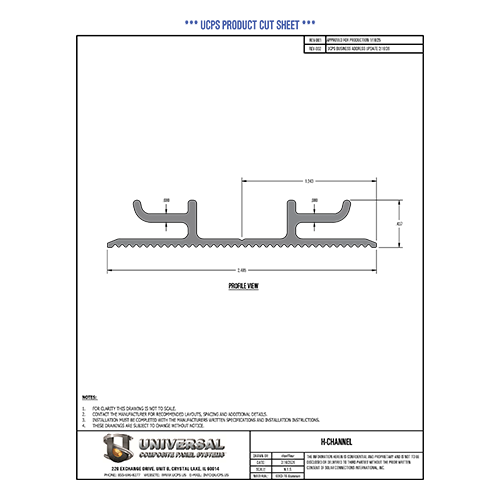

H-Channel Cut Sheet
Right Angle Stamped Cut Sheet

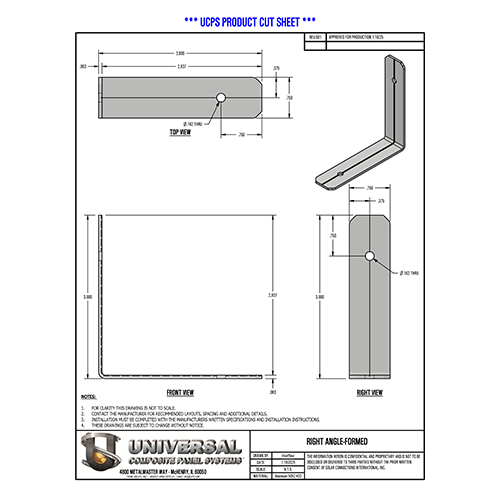

Right Angle Formed Cut Sheet
Universal Composite Panels Digital Resources.
The one stop hub for all your information documentation from fabrication to installation.
